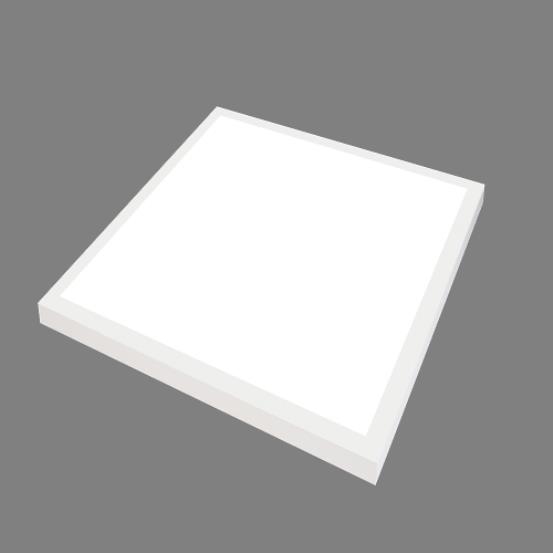

ETL Surface Mount Panel Light
UL ETL DLC PRODUCTS
ETL Surface Mount Panel Light
Back-lit technology makes the life longer limited to the LGP.Signicantly reduce subsequent maintenance costs.
Special lenses are used for better luminous efficiency.
Available in various size :1x1" ,1x2",2x2",1x4",2x4"
Multi-purpose light fixture .
Quick and safe instalation can be completed in one minute .
Can set the functions as CCT trunable or RGB by APP.
Specifications:
|
Item No. |
120-11FT |
120-12FT |
120-14FT |
120-22FT |
120-24FT |
|
Type |
Multi-purpose light fixture |
Multi-purpose light fixture |
Multi-purpose light fixture |
Multi-purpose light fixture |
Multi-purpose light fixture |
|
Regular Powers |
16W/18W/20W |
16W/18W/20W |
30W/40W/46W |
30W/40W/46W |
40W/46W/56W |
|
Input Voltage |
120V |
120V |
120V |
120V |
120V |
|
Luminous Efficiency |
110lm/W |
110lm/W |
110lm/W |
110lm/W |
110lm/W |
|
Operation Temp. |
-20~50℃ |
-20~50℃ |
-20~50℃ |
-20~50℃ |
-20~50℃ |
|
Color Temp. (K) |
3000K/4000K/5000K |
3000K/4000K/5000K |
3000K/4000K/5000K |
3000K/4000K/5000K |
|
|
CRI (Ra>) |
80 |
80 |
80 |
80 |
80 |
|
LED Chip Source |
SMD 2835 |
SMD 2835 |
SMD 2835 |
SMD 2835 |
SMD 2835 |
|
Body Material |
Aluminum + PC |
Aluminum + PC |
Aluminum + PC |
Aluminum + PC |
Aluminum + PC |
|
Housing Finished |
Stoving varnish |
Stoving varnish |
Stoving varnish |
Stoving varnish |
Stoving varnish |
|
Color |
White / Black / Nickel plating |
White / Black / Nickel plating |
White / Black / Nickel plating |
White / Black / Nickel plating |
White / Black / Nickel plating |
|
Lifespan (hours) |
30000 |
30000 |
30000 |
30000 |
30000 |
|
Warranty (Years) |
3 Years |
3 Years |
3 Years |
3 Years |
3 Years |
|
Dimmable (Y/N) |
Y(APP) |
Y(APP) |
Y(APP) |
Y(APP) |
Y(APP) |
|
CCT Adjustable (Y/N) |
Y(APP) |
Y(APP) |
Y(APP) |
Y(APP) |
Y(APP) |
-
We are here：The 133th Canton Fair-YXW LED panel light China factory.
Shenzhen Yixinwei Electronics Co.,Ltd was built in 2017. In past 6 years, we Focused on all kinds of led panel lights manufacturing and design.OEM/factory focus on the LED panel lights over 10 years
