LED Lighting emergency conversion kits slim case-VL063C018

LED Emergency Conversion Kits

VL series VL063C018

10-90V output voltage self-adaptation

Product Description

1.The emergency conversion kits includes the inverter, battery pack and the LED charging indicator,test switch

2.Allows the charger to trickle charge the battery pack in standby mode, Automatically activates when power failure

3.Maintained Mode

4.Equipped with LiFePO4 battery

5.220-240V/110-240V two ways input voltage

6.Constant power voltage self adaption

Range of Application

1.Suit Led lighting with external driver.For instance,LED panel,LED downlight,LED spotlight..

2.For Led lighting 6-80W

3.Output voltage is 10-90V,emergency power is reduced to be 1-5W

4.Used at 0-+45 environment temperature

5.The biggest output voltage is up to 90V,suit to be installed in the lamp body

6.Double insulation design

Product Specification

        1.Intelligent IC control circuit, emergency power automatically light on in case of power outage and converted to charging status when electricity power back to work well

2.Hours of emergency duration which also can be customized.When mian power is off,the emergency controlgear can supply 1 to 3 hours duration

3.The efficiency is as high as 90%,power is less than 0.5 watts in standby mode

4.The conversion time is less than 0.1 seconds

5.Battery can be installed in the case or outside

6.The controlgear can be intended for use in luminaries for high-risk task area lighting

7.Do not make the battery polarity reverse

8.Double/reinforced insulation

9.The battery will be recharged normally when the fuse was broken (after the fuse was changed)

10.Charge 24 hours before testing the emergency duration

   Technical Data

LED Emergency Conversion Kits

VLB series

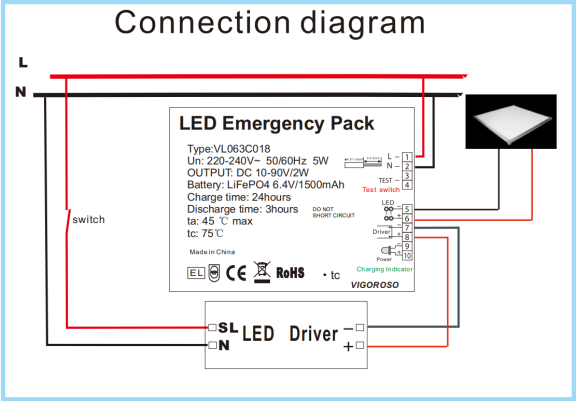

Wiring diagram

Installation

1.LED emergency power kit can be designed as split type emergency power for convenient installation and usage.

2.LED emergency power kit also can be made as boxed one-piece emergency power that includes a full set of power and accessories. It consists of inverter, battery pack, metal casing, test button, LED indicator and waterproof joint or connector.

3.L (line) and N (neutral) must be charged frequently, external connection with control switch is prohibited

4.Comply with the wiring diagram strictly to connect circuit in other conditions.

Battery model

Accessories

   Note:1.Core of cable should be 0.5-1.5mm,Wire stripping length should be 5-6.5mm

        2.Ultimate protection against electric shock: consider through integral lamps

LED Emergency Conversion Kits VL series

CE approved
