300x1500x27mm
620x620x27mm，
600x600x27mm,
300x600x27mm,
300x1200x27mm
100-130LM/W，25-60w Available. CRI>80,CRI>90, URG<19,
300x1500mm Surface mounting edgelit panel light
Sidelit surface mounting Ceiling Panel Light Fixtures
100-130LM/W，25-60w Available. CRI>80,CRI>90, URG<19,
|
Model Number |
300*1200*27mm |
600*600/620*620 100LM/W |
|
Watts: |
40w |
40w |
|
Color temperature: |
4000K |
4000K |
|
Luminous flux: |
4000 Lumen |
4000 Lumen |
|
LB factor: |
L90B50 |
L90B50 |
|
Frame color: |
RAL9016 white |
RAL9016 white |
|
Beam angle: |
120° |
120° |
|
Material: |
Aluminum + PMMA |
Aluminum + PMMA |
|
Size: |
600*600*27mm |
600*600*27mm |
|
Power factor： |
>0.9 |
>0.9 |
|
Ra , CRI: |
>80 |
>80 |
|
Input power: |
200-240v |
200-240v |
|
Dimmable: |
Yes, depending on type of driver |
Yes, depending on type of driver |
|
Driver: |
Available DALI,0-10V,Traic,Emergency pack |
|
|
IP-rate: |
IP40 |
IP40 |
|
Certifications: |
CE,EMC,RoHS,TUV. |
|

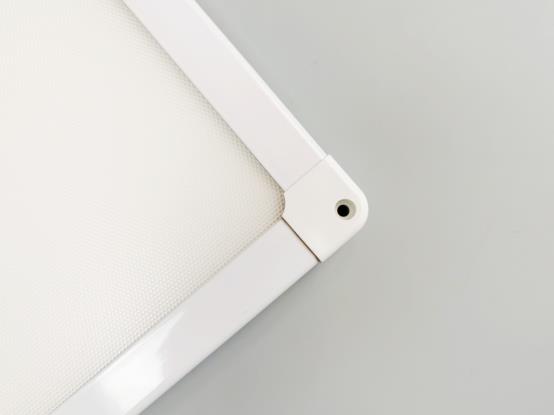

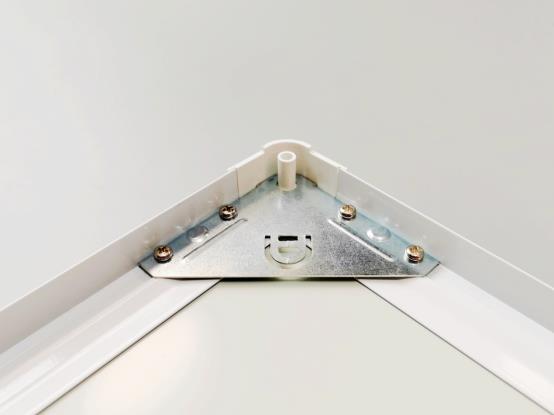

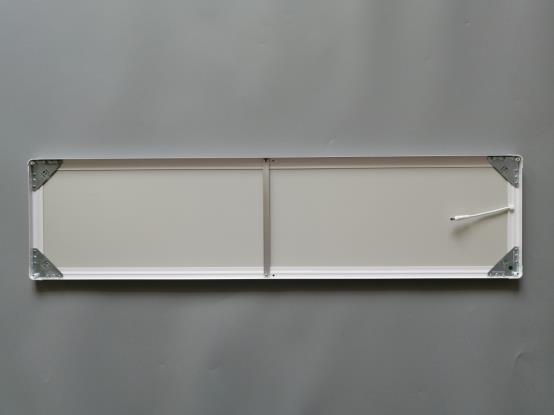

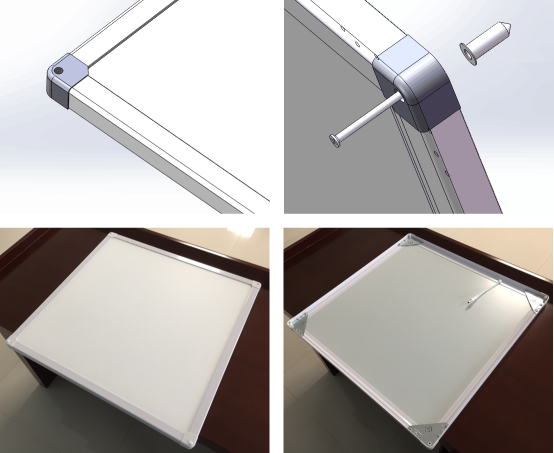

LED sidelit mounting ceiling Panel Light Pictures:
300x600x27mm
620x620x27mm UGR<19
600*600x27mm UGR<19
300*1200x27mm UGR<19
300*1500x27mm UGR<19

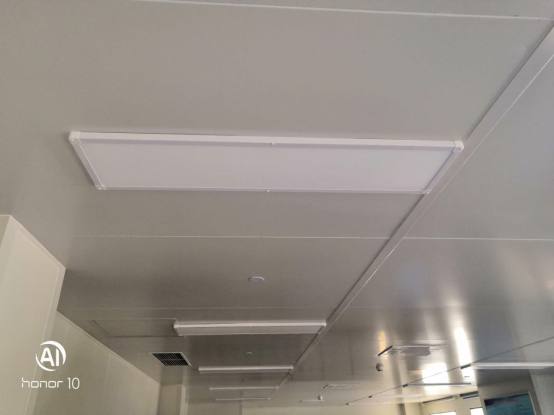

installation complete case
