Without LGP, never turn yellow
Isolated driver, PF>0.9, THD≤15 %
Super bright SMD2835 LEDs, LM80 rated Ra>80

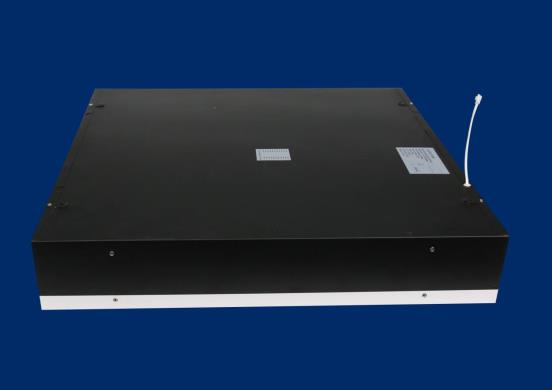

Blue Sky LED Recessed Troffer Light
Blue Sky LED Recessed Troffer Light
Light relif sky and clouds light Diffuser Panels for Decorations
Without LGP, never turn yellow
Isolated driver, PF>0.9, THD≤15 %
Super bright SMD2835 LEDs, LM80 rated Ra>80
Lumen output: 130LM/W IP
Rating: IP40 Operating
temperature: -20°C to 50°C AC120-277V or AC120-347V, 0-10V dimmable
Non-flicker, no dark spot, protect your eyes
Ideal replacement for traditional troffer with over 80% energy saving
Product detail
|
Model No. |
XSD6-BSK-6060 |
XSD6-BSK-30120 |
XSD6-BSK-60120 |
|
Certification Number |
|
|
|
|
Finish |
White |
White |
White |
|
Product Weight |
6.0KG |
6.0KG |
9.0KG |
|
Product Dimension |
597X597X102mm(Standard) |
1197X297X102mm(Standard) |
1197X597X102mm(Standard) |
|
Ingress Protection (IP) |
IP40 |
IP40 |
IP40 |
|
Rated Wattage |
60W±5% |
60W±5% |
100W±5% |
|
Lumens |
>1220lm |
>1446lm |
>3000lm |
|
Lumens Per Watt |
>20.3lm/W |
>24lm/W |
>30lm/W |
|
Working Temperature |
Min -10°C to Max +40°C |
Min -10°C to Max +40°C |
Min -10°C to Max +40°C |
|
Housing Material |
Cold Rolled Steel |
Cold Rolled Steel |
Cold Rolled Steel |
|
Diffuser Material |
PC |
PC |
PC |
|
LED Brand&Modle |
Runlite LED: T28351-WWG0F2F3FB5B8-AF00 |
Runlite LED: T28351-WWG0F2F3FB5B8-AF00 |
Runlite LED: T28351-WWG0F2F3FB5B8-AF00 |
|
Color Temperature (K) |
|
|
|
|
CRI |
≥80 |
≥80 |
≥80 |
|
LED Quantity |
280PCS |
252PCS |
504PCS |
|
LED Lifetime |
50,000Hrs |
50,000Hrs |
50,000Hrs |
|
Beam Angel |
160° |
160° |
160° |
|
Voltage (V) |
220V~240V |
220V~240V |
220V~240V |
|
Driving current (A) |
0.28A |
0.28A |
0.48A |
|
Total running Wattage (W) |
60W±5% |
60W±5% |
100W±5% |
|
Electrical Classification |
Class I |
Class I |
Class I |
|
Power Factor Correction |
≥0.9 |
≥0.9 |
≥0.9 |
|
Cabling |
3x0.75mm² cable |
3x0.75mm² cable |
3x0.75mm² cable |
|
LED Driver |
Tridonic: LC 60W 1050/1200/1400mA flexC SR ADV |
Tridonic: LC 60W 1050/1200/1400mA flexC SR ADV |
Tridonic: LC 100W 1100–2100mA flexC SR EXC |
|
Dimming |
No |
No |
No |
|
Intended Market |
220~240V |
220~240V |
220~240V |
|
Warranty |
3 Years |
3 Years |
3 Years |
Application:
