Back-lit LED panel light

Back-lit  LED Panels datasheet

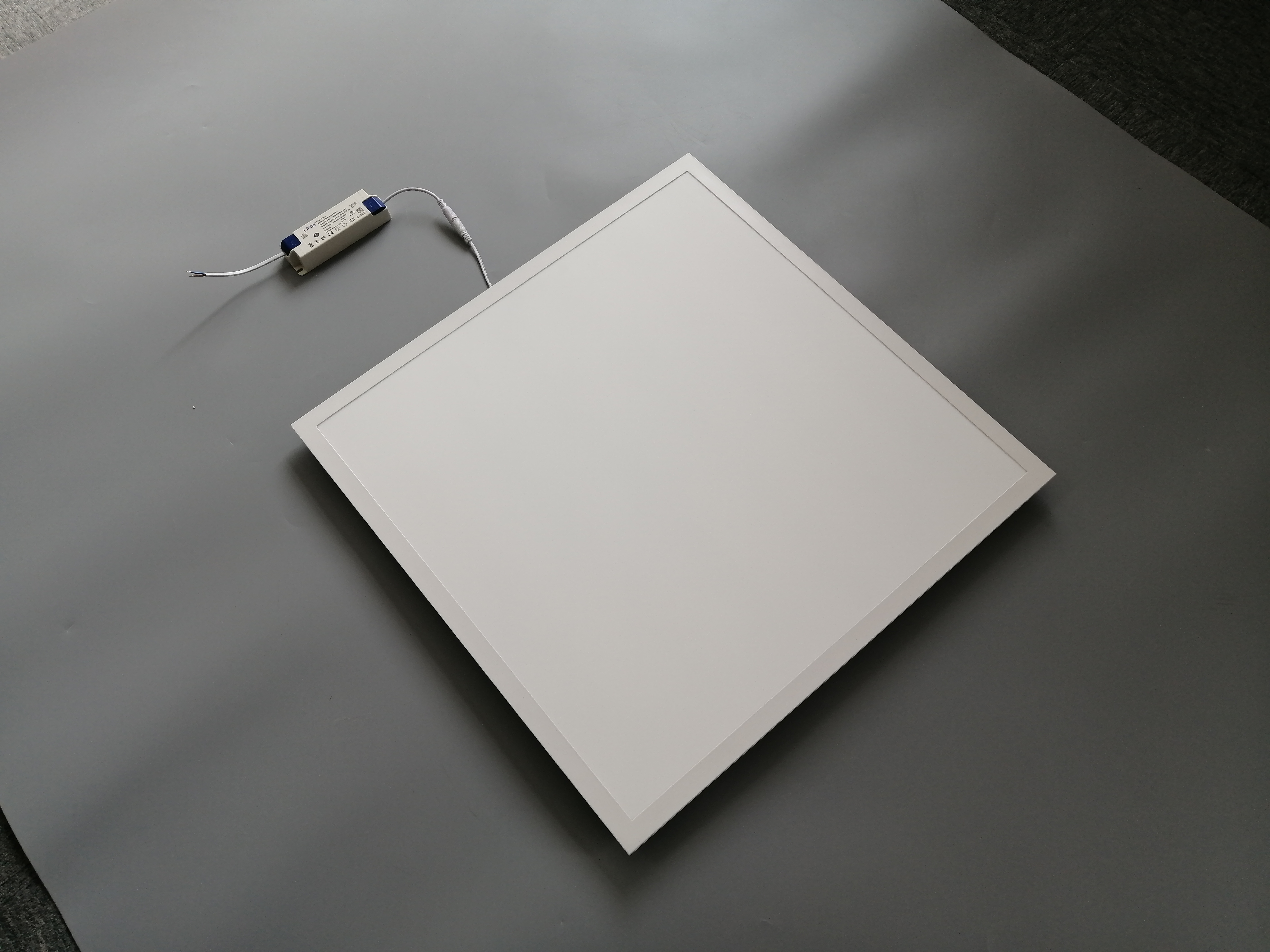

Pics for LED Panel Light

595*595*33mm

Surface mounting frame- 600*600*70mm

Mounting frame for LED panels

This mounting frame can be used when you want to mount the LED panel to a fixed ceiling and you don't have a system ceiling. The mounting frame is made of durable aluminium. This frame has the same white color as the edge of your LED panel so that it forms a perfect picture.

Screwless Mounting frame

The LED panel mounting frame is designed in such a way that there are no screw connections at the corners, this screwless LED panel mounting frame has a very nice appearance without annoying screws in sight. This 60x60 cm LED panel frame also has 2 holes on each side with which you can mount the frame firmly to the ceiling. The height of this frame is 7 cm so you are assured that you can work the driver of the LED panel out of sight.

600*1200*70mm Surface mounting fame use at home.

Clamping springs set 4 pieces for 60x60 LED Panels (140lmW)

Suspension kit 60x60 and 30x120 LED Panels (125lm/W and 140lm/W)

This LED Panel Suspension System is an accessory that allows you to easily mount LED Panels to any kind of ceiling, this is very handy when you can't integrate the LED panel into a suspended ceiling or when you don't want to use an add-on frame but want to hang the panel in a lowered position. The height to hang the LED Panels from the ceiling is variable adjustable up to 150 cm. The suspension set is suitable for the LED panels in sizes 60x60 cm and 30x120 cm.

Advantages LED Panel Suspension System

·       Suitable for 60x60 cm and 30x120 cm LED Panels

·       Complete set of 4 cables incl. fasteners

·       Height adjustable (max. 150 cm)

·       Suitable for any type of ceiling

·       Easy installation

LED EMERGENCY MODULE for 60x60 and 30x120 LED Panels

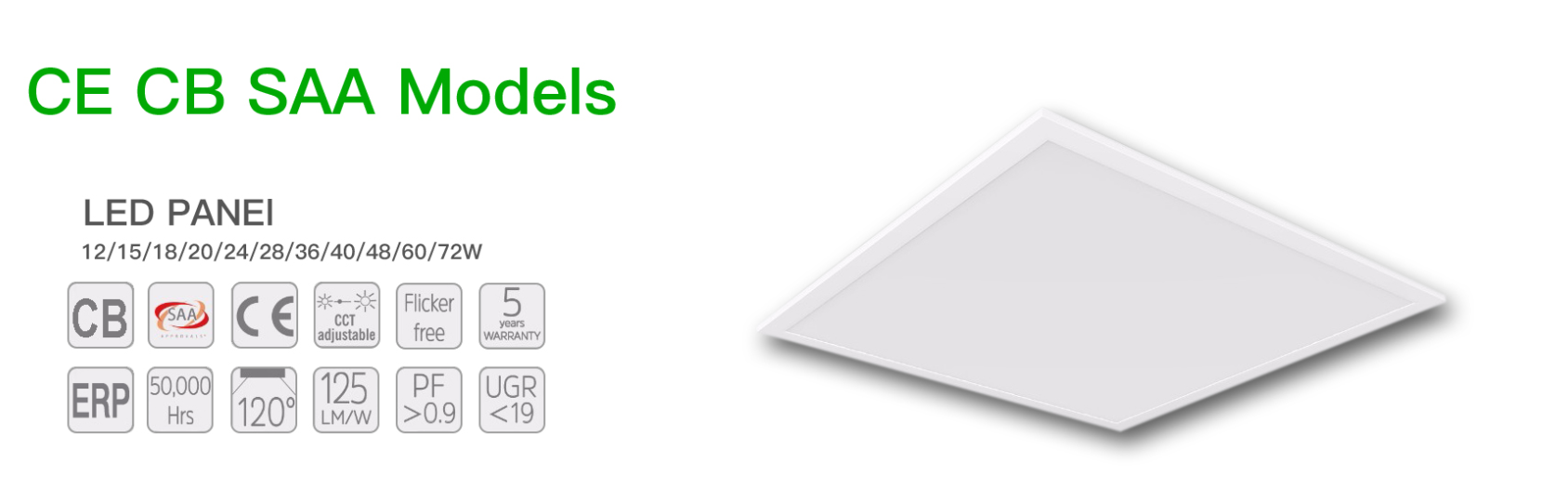

LED UGR19 PANEL LIGHT Advantages

·       Sustainable: Replace your traditional fluorescent lighting with these energy-efficient LED panels.

·       Easy installation: These LED panels are lightweight and also very easy to install.

·       Safe driver: The included driver safely transforms the voltage from 230V to 24-40V.

·       Flicker-free transformer: Thanks to the optimised transformer supplied with this LED panel, the panel functions without flickering.

·       Burning hours: This LED panel has no less than 50,000 burning hours, equivalent to more than 20 years.

·       5-year guarantee: Enjoy these panels optimally and carefree with a 5-year guarantee.

Easy installation

These LED panels are suitable for suspended ceilings and are easy to install yourself, without any specific technical knowledge. Just disconnect the old panel, connect the LED panel to the supplied driver and reconnect the panel to the power supply. Note: the LED panel comes without a power cord as standard, so if you want to plug it into a socket, order a power cord along. No suspended ceiling? Then buy a surface-mounted frame to hang the LED panel.

Safe driver

The included driver ensures that the panel is safely connected to the right voltage. For this purpose, the voltage is converted from 230V to 24-40V.

Flicker-free transformer

Thanks to the optimised transformer supplied with this LED panel, the panel functions without flickering. If you also want to be able to dim the LED panel, you purchase a dimmable LED driver for this.

Burning hours

This LED panel has no less than 50,000 burning hours. That is over 20 years. So the panel is not only extremely durable in terms of consumption, but also in terms of its long lifespan.

5-year warranty

The quality of these LED panels is guaranteed for 5 years. The LED panels are manufactured from the highest achievable quality materials. Enjoy these panels optimally and also carefree with low maintenance.

Intelligent Control of LED Light Panels

YXW LIGHT can provide customers with more cost-effective lighting solutions, DALI, ZigBee, motion sensor, microwave sensor, daylight harvest sensor and other dimming methods like 0-10V and DALI dimmable can all be customized.
