Emergency time:3 hours

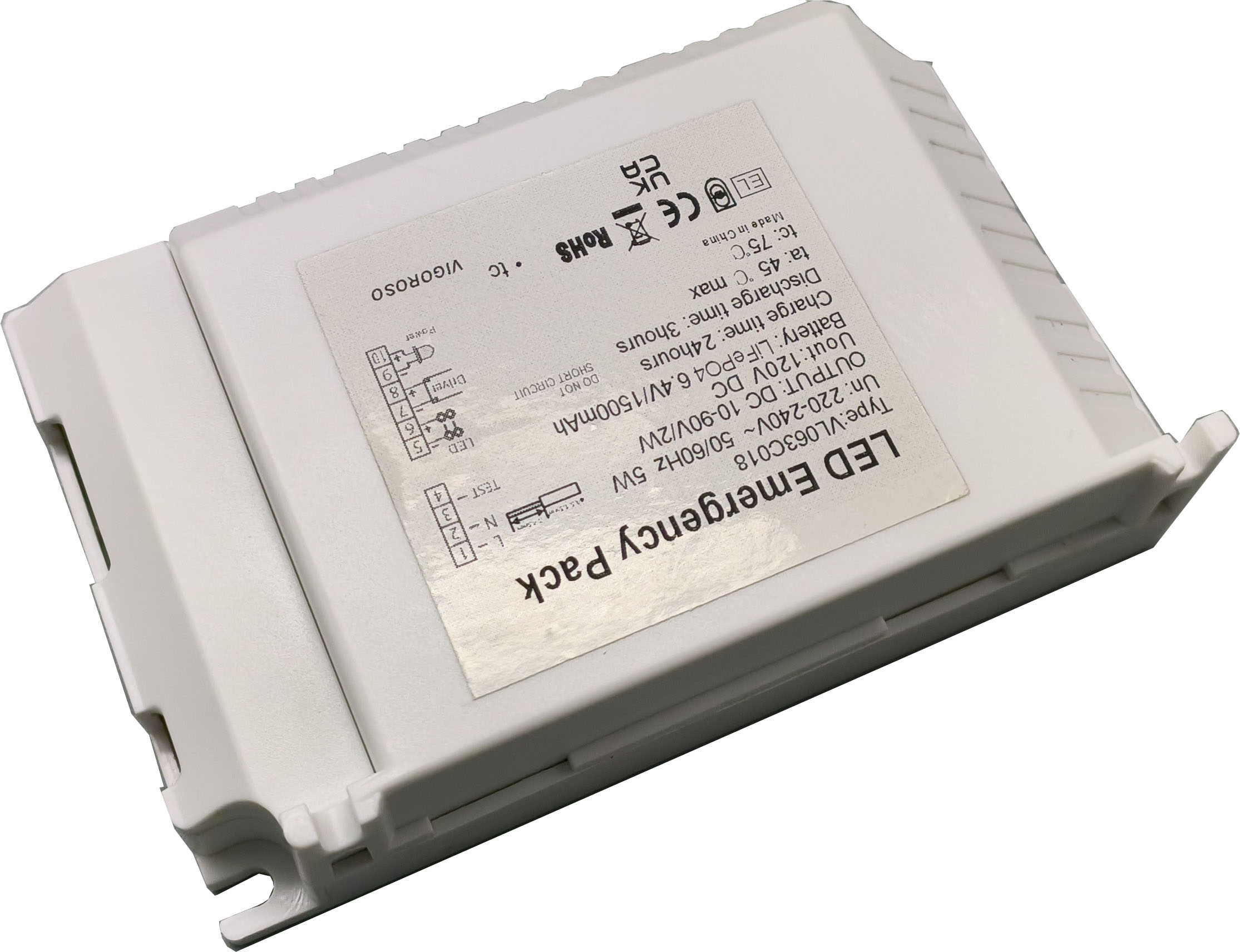

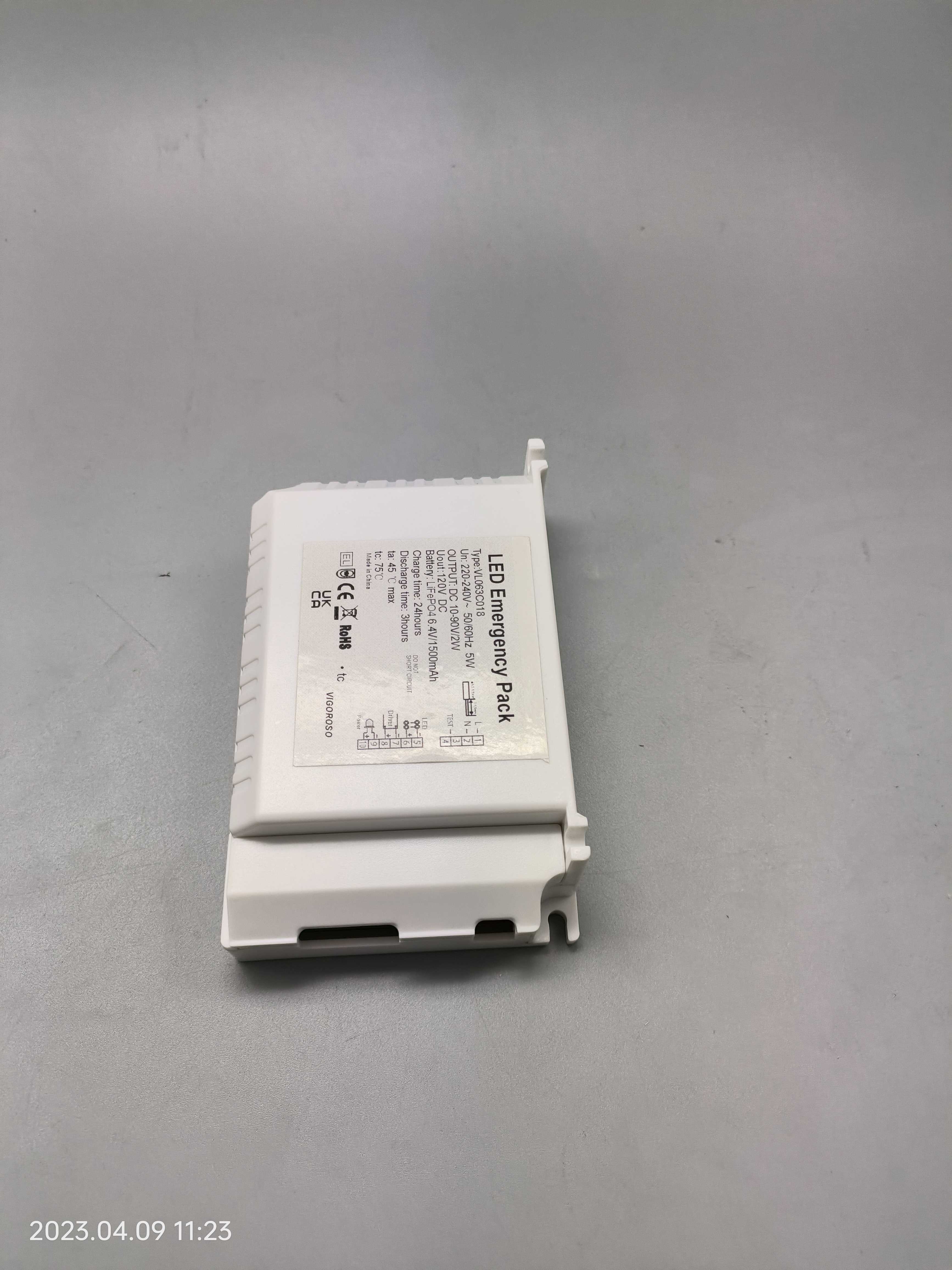

LED Lighting emergency conversion kits slim case-VL063C018
4.Equipped with LiFePO4 battery
5.220-240V/110-240V two ways input voltage
6.Constant power voltage self adaption
1.Suit Led lighting with external driver.For instance,LED panel,LED downlight,LED spotlight..
3.Output voltage is 10-90V,emergency power is reduced to be 1-5W
4.Used at 0-+45 environment temperature
5.The biggest output voltage is up to 90V,suit to be installed in the lamp body
3.The efficiency is as high as 90%,power is less than 0.5 watts in standby mode
4.The conversion time is less than 0.1 seconds
5.Battery can be installed in the case or outside
6.The controlgear can be intended for use in luminaries for high-risk task area lighting
7.Do not make the battery polarity reverse
8.Double/reinforced insulation
9.The battery will be recharged normally when the fuse was broken (after the fuse was changed)
10.Charge 24 hours before testing the emergency duration
Inner package material |
PC/ABS |
Input Voltage |
AC 220V-AC240V,50HZ/60HZ; |
Emergency time |
3hours |
Emergency conversion time |
Less than 0.1Sec |
Charging time |
24h |
Emergency output Voltage |
DC 10-90V voltage self-adaptation |
Battery model |
LiFePO4 battery |
LED charging indicator |
Green |
Test switch |
Not equipped |
Protection |
Over-charge/Over-discharge/Shirt circuit/No load protection |
Fuse |
T2a-250v - Patch slow fuse -1808:2A |
PF |
>0.5 |
Installation
1.LED emergency power kit can be designed as split type emergency power for convenient installation and usage.
2.LED emergency power kit also can be made as boxed one-piece emergency power that includes a full set of power and accessories. It consists of inverter, battery pack, metal casing, test button, LED indicator and waterproof joint or connector.
3.L (line) and N (neutral) must be charged frequently, external connection with control switch is prohibited
4.Comply with the wiring diagram strictly to connect circuit in other conditions.
Battery model
Accessories
Note:1.Core of cable should be 0.5-1.5mm,Wire stripping length should be 5-6.5mm
2.Ultimate protection against electric shock: consider through integral lamps
Charge current |
0.05C(1c=capacity) |
||||||||
Charge voltage |
11V |
||||||||
Output current |
30-100mA |
||||||||
Emergency Mode |
Constant power |
||||||||
Output power |
2w |
||||||||
Inverter dimensions |
225×40×28mm |
||||||||
Product weight |
200g |
||||||||
|
|
||||||||
Item No. |
Battery |
Emergency power |
Emergency time |
Charge current |
|||||
VL053B018CL-B |
LiFePO4 6.4V 1500mAh |
2W |
3hours |
75mA |
|||||
Item No. |
Spec |
Length |
Quantity |
||||||
LED Charging indicator |
2*0.3 cable |
30cm/Custom desigh |
1 |
